Robitronic iCUBE ESC

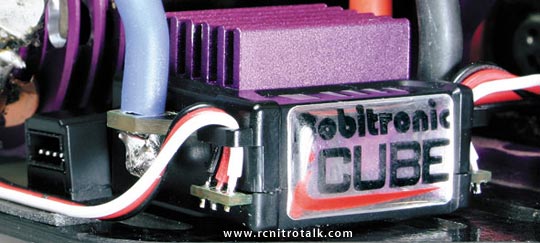

Robitronic iCUBE electronic speed controller

The Robitronic iCUBE ESC is another milestone in the development of electronic speed controllers. The Robitronic iCUBE electronic speed controller delivers unbelievable performance and many new features make the iCUBE an outstanding product, for competition use and demanding drivers alike.

Robitronic iCUBE Features:

  • New generation of PowerFETs with lower on resistance
  • 5 optimized Power Programs developed by World Topdrivers (Full Power, Power Save, Team, PC and Li-Po for 2 Cells)
  • Adjustable current limiter
  • Intelligent Fet Controll Protection (IFC)
  • Adjustable brake frequency
  • Auto Brake and Auto Roll adjustable
  • External setup button with data link
  • Switch off with transmitter
  • External soldering tabs for receiver- and silicone flex wire
  • Optimized current flow for lower heat
  • Optional PC-Interface for Setup and Software Update with Datarecorder (Throttle position, Current, Voltage, Laptimes)
  • Heatsink in 3 colors

Robitronic iCUBE ESC Specifications:

  • Input power: 4-7 (4,8-8,4 V)
  • Motorlimit: 5 Turn
  • Frequency: 0,5-8kHz
  • B.E.C. Output Voltage: 6.0V
  • B.E.C. max. Current: 3.0A
  • Weight without wires: 21g
  • Case size: 27x25x13,5mm

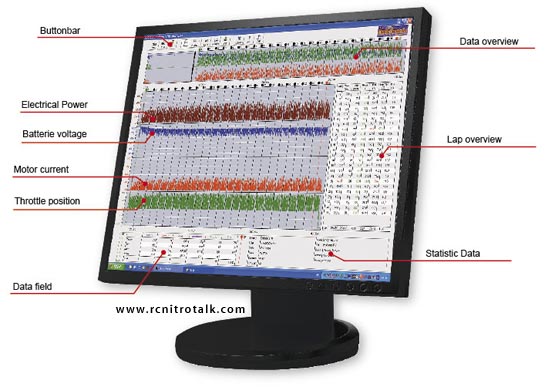

iCUBE PC Interface:

PC Interface for iCUBE ESC

With the iCUBE PC Interface you can easily read the data from your Robitronic iCUBE. The data recorder shows you all the important data to find the last tenths of a second on the track. The graphic data view and the displayed round times help you to optimize your driving style and the settings of your Robitronic iCUBE ESC. The software can be used on all Windows platforms.

PC Requirements:

  • CPU: Pentium 300 or higher
  • Memory: min. 128MB RAM
  • Harddrive: min. 10MB free space
  • Resolution: 1024×768 or higher
  • Peripherals: CD-ROM drive, USB port
  • OS: Windows 98SE, Windows 2000/XP

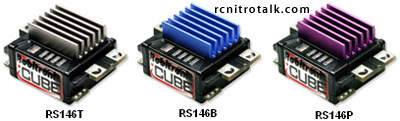

Robitronic iCUBE - all models

Robitronic iCUBE Part Numbers:

RS146B iCUBE Speedo with Datalogger
RS146P iCUBE Speedo with Datalogger
RS146T iCUBE Speedo with Datalogger

MSRP: $375.00

For more info about the iCUBE head over to Robitronic’s website or you can join the discussion about the new ESC in our General Electric Talk forum!
