Robitronic CUBE 2

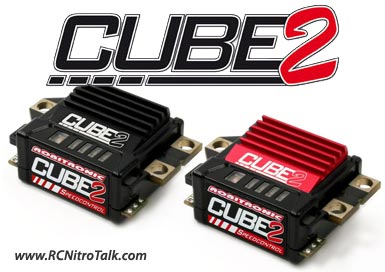

Robitronic CUBE 2 - Black and Red

Robitronic has just released the Robitronic CUBE 2 which is their newest revolution of electronic speed controllers (ESC) on the market. The Robitronic CUBE 2 is more powerful, more efficient and optimized for any R/C race classes. The incredible power and speed found in the Robitronic Cube 2 is perfect for any touring car stock classes. An additional optimized 2wd off-road program provides super soft driving and starts. The Robitronic CUBE 2 also comes with a built in Data Recorder which stores important data such as throttle position, current, voltage and more).

Robitronic CUBE 2 Features

  • New generation of PowerFETs with lower on resistance
  • 6 optimized Power Programs developed by World Topdrivers (Programs for 2S-2P LiPo’s and for 2wd Offroad)
  • Current limiter adjustable
  • Frequency of the brake adjustable
  • Auto Brake and Auto Roll adjustable
  • Switch off with transmitter
  • External setup button with data link
  • External soldering tabs for receiver- and silicone flex wire/li>
  • Intelligent Fet Controll Protection (IFC)

The Robitronic CUBE 2 ESC also features a new flat design which is available in both red and black colored heatsinks. Just like the Robitronic iCUBE the Robitronic CUBE 2 is compatable with an optional PC-Interface for setup and software update with Datarecorder (Throttle position, Current, Voltage, Laptimes).

Robitronic CUBE 2 Specifications

  • Input Power: 4-7 cells (4.8-8.4 V)
  • LiPo: 2 cells (2S-2P)
  • Case Size: 27x25x13.7 mm
  • Motor turns limit: no limit
  • Weight without wires: 20g
  • Operating frequency: 0.5-8 kHz
  • B.E.C. Output Voltage: 6.0 V
  • B.E.C. max. Current: 3.0 A
  • Power Programs: 6

Part #: RS146R – Robitronic CUBE 2 Red
Part #: RS146BK – Robitronic CUBE 2 Black

Discuss the new Robitronic Cube 2 ESC in our General RC Electric Talk forum.
