Team Associated SC8.2e RTR short course truck

Team Associated SC8.2e

Team Associated have just added another RC Short Course Truck to their lineup with their new SC8.2e RTR truck. The Associated SC8.2e RTR includes features such as a 2000 kv brushless motor, 2.4Ghz radio system, waterproof 4S speed controller with Deans plugs, high torque metal gear servo, and 7075 aluminum chassis plus many other cool features!

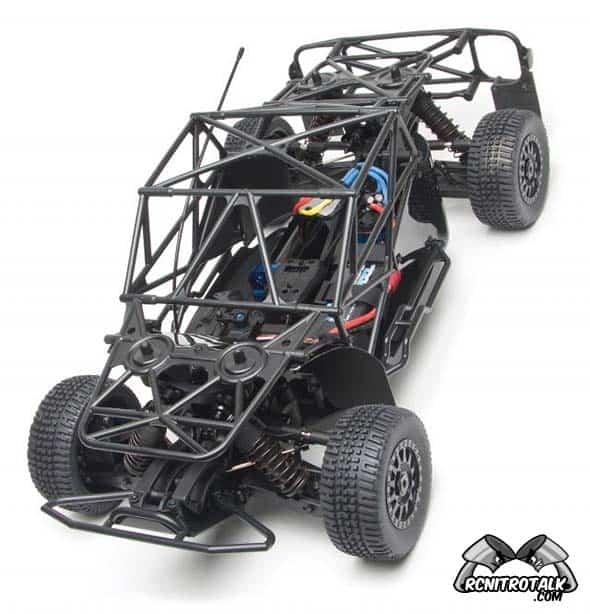

Associated SC8.2e chassis

The Associated SC8.2e RTR was designed to meet the scale specifications of the 1:1 short-course race trucks. It’s all there, from the scale suspension travel, to the roll-cage tube diameter, to the functional mud flaps. The result is the SC8.2e RTR, a creation of an unparalleled scale experience at the top level of performance.

Associated SC8.2e RTR Features

  • Factory-finished Lucas Slick Mist body
  • New Method Race Wheels© designed to fit most popular 1:10 scale short-course racing tires
  • Functional roll cage with integral dirt shields
  • Waterproof XP SC1300-BL brushless electronic speed control with Deans® Ultra Plug® (2S-4S LiPo compatible)
  • Powerful Reedy 2000kv brushless motor
  • XP 2.4Ghz radio system with high torque S2008MG metal gear servo
  • Updated RC8.2 racing suspension geometry
  • 16mm Big Bore molded composite shock bodies with aluminum shock caps and rubber shock boots
  • Low center-of-gravity 3mm thick 7075 aluminum shock towers
  • Hard-anodized 7075 aluminum chassis with keyed lower suspension plates
  • Caster blocks adjust 14, 16, or 18 degrees with molded inserts
  • Molded suspension pivot bushings for adjustable pivot height
  • 4.30:1 ratio gearboxes
  • Functional and realistic front and rear bumpers with mud flaps
  • Large speed control mounting area raised off of the chassis to allow for easy mounting of common speed controllers with convenient switch-mounting boss
  • Padded battery tray holds two 7.4V battery packs or one 14.8V battery pack, with three hook-and-loop straps for secure mounting
  • Enclosed receiver box for optimum electronics placement
  • Aluminum steering knuckles for improved durability
  • Lightweight and durable 3.5mm drivetrain
  • Receiver, servo, and battery tray remove from car in one piece for easy maintenance and cleaning
  • Steel alloy turnbuckles
  • Convenient wire routing keeps critical electronic wires out of drivetrain components and simplifies disassembly
  • Includes 17-tooth pinion gear and 46-tooth molded spur gear

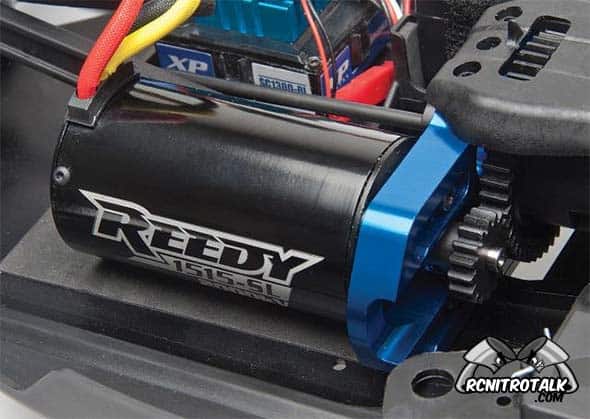

Team Associated SC8.2 RTR brushless motor

Associated SC8.2e RTR Specifications

Power Source: Electric
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Ready-To-Run
Length: 616mm (24.25in)
Width: 311mm (12.24in)
Wheelbase: 375mm (14.76in)
Weight: 4040g (8.91 lbs)
Internal Gear Ratio: 4.30:1
Drive: 4WD

Part #: 80934 – Team Associated SC8.2e short course truck
Available: August 2012

Discuss the new Associated SC8.2e RTR brushless short course rc truck in our Short Course Trucks forum.
