Traxxas X-Maxx MONSTER Truck

October 30, 2015

Traxxas X-Maxx monster truck

Traxxas just announced their newest and largest monster truck yet, the Traxxas X-MAXX. Nearly 30 inches long, 22″ wide and 4″ ground clearance, and nearly 20 pounds the Traxxas X-Maxx is HUGE to say the least. The X-Maxx monster truck is 4WD and equipped with a Velineon brushless motor.

Traxxas X-Maxx compared to Traxxas E-Maxx

The fun doesn't stop there, the Traxxas X-Maxx also features Traxxas Stability Management (TSM) to help prevent the loss of control on rough or slippery terrain. In the event that you flip over your X-Maxx monster truck, the X-Mass also features a self-righting innovation. Simply pressing a button on the 2.4Ghz radio system and the X-Maxx will roll itself over back on it's wheels in most cases!

Traxxas X-Maxx chassis

Traxxas X-Maxx Specs

Length: 29.84 inches (758mm)
Front Track: 22.26 inches (540mm)
Rear Track: 20.66 inches (525mm)
Ground Clearance: 4 inches (102mm)
Weight: 19.1lbs (8.66kg)
Height (ride): 13.79 inches (350mm)
Wheelbase: 18.92 inches (480mm)
Shock Length: 7.4 inches (187mm)
Tires (pre-glued): 8.0×4.0 inches (203mm)
Wheels: 4.3×5.7 inches (110x145mm)
Speed Control: Velineon VXL-6s
Motor (electric): Velineon 1600
Transmission: Single-Speed

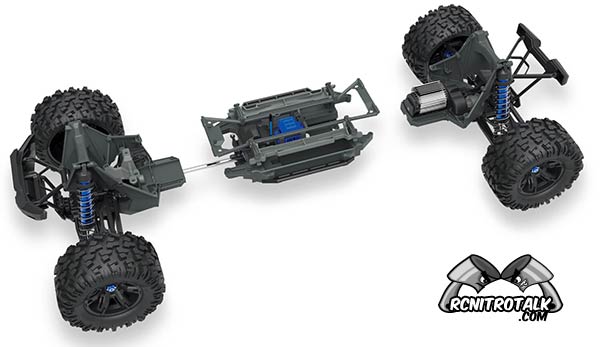

Traxxas X-Maxx modular chassis

Traxxas X-Maxx features

  • VXL-6s brushless speed controller, 6S LiPo-compatible
  • Velineon 1600XL 1600kv 4-pole brushless motor
  • Traxxas Stability Management
  • TQi 2.4GHz radio system
  • One-hand body mount system
  • 4WD drivetrain
  • Steel CVDs
  • All-metal differentials
  • Preset gear mesh adjustments
  • Modular composite chassis
  • Battery retention system without bodyclips or straps
  • New steering bellcranks & servo saver
  • Dual wishbone suspension
  • Aluminium shock absorbers
  • 8x8x4 inch all-terrain tires

Traxxas X-Maxx shocks

Traxxas X-Maxx demo video

Buy Now – AMain

Part #: 77076-4 – Traxxas X-Maxx monster truck
MSRP: $799.95
