CJ's Ultimate Traxxas X-Maxx Maxxine

Hi everyone, How's it going? Here's my RC Showcase for my Traxxas X-Maxx which is the 2nd one i've ever owned since buying a new rock n roll one 4 years ago as of this year. I've had this truck since June 9th 2023 and have been slowly upgrading it and building it up to be my Ultimate X-Maxx. Still have a long way to go with this project but after today as of March 10th 2025 i made some great progress.

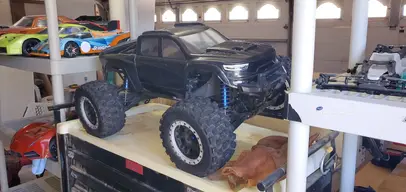

Here's some pics of my beast.



Body off pics.



Specs (At the moment):

Spektrum Firma 160 V2 Black edition 160a 3 - 8s Sensorless Brushless ESC (same as a new Kraton\Outcast 8s EXB RTR)

Spektrum IC5 connectors soldered onto ESC

Traxxas Velineon 1200XL 1,275kv Sensorless Brushless stock motor with stock Traxxas dual fan heatsink and x2 Surpass Hobby 35mm aluminum high voltage fans

Arrma Safe-D 16 Tooth Mod 1 Steel pinion gear (came with my Arrma Felony) meshed to Hot Racing clone 54 Tooth Mod 1 Steel spur gear with stock cush drive system

Spektrum DX6C 6 Channel DSMR\SLT Digital computer 2.4Ghz Transmitter

Spektrum SR315 3 Channel DSMR 2.4Ghz Receiver

Traxxas 2085 plastic gear digital stock servo (Might upgrade to a different servo once this one fails)

x2 ZEEE 6,200Mah 14.8V 4S 80C LIPO Batteries with EC5 connectors soldered onto them (For 8s Running)

Traxxas GTX Blue anodized threaded aluminum body shocks with plastic caps, spring collars filled with stock 30wt fluid

Traxxas 8s Stock front, center and rear differentials filled with 30k front, 50k rear and 20mil center fluids

Pro-Line 4.3in Impulse Pro-Loc Beadlock wheels mounted onto Pro-Line Badlands MX43 4.3x8.0in Tires

Pro-Line 2021 Dodge Ram 1500 TRX body custom painted in Black mounted on stock Traxxas roll cage clipless mounting system (I do plan on getting a stock X-Maxx body for it someday like an Ultimate one or a Rock n Roll)

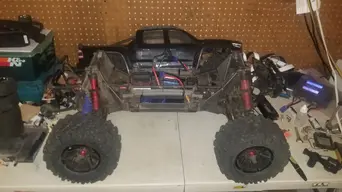

Here was my truck when i first got her.
