CKRC Adjustable Berg Chassis

ckrc berg adjustable chassis

CKRC has just released their new adjustable rc rock crawling chassis, the CKRC Rock-It chassis! The CKRC Rock-It adjustable berg chassis is a top of the line competition chassis built to perform and take take your Berg into the winners circle.

The adjustability of the CKRC Rock-It adjustable chassis is endless. Ground clearance is adjustable by 1 1/4″! Multiple upper link mounting holes and shock adjustments are made for the true RC Crawling tuner. Shocks from 2.5″ to 5.5″ can also be used.

The CKRC Rock-It adjustable chassis is the result of testing multiple designs over the last few months. CKRC’s goal was to design a chassis that gained performance in all the crucial areas, without having to sacrifice performance in others.

One major performance gain on the CKRC Rock-It adjustable chassis is the 2″ chassis width. This keeps the lower links more parallel while keeping the chassis from getting caught up through the rocks, All the chassis mounting holes were also machined flat. Another area that needed attention was the skid plate. The CKRC Rock-It adjustable chassis includes a smooth machined 3/8″ thick Delrin skid plate.

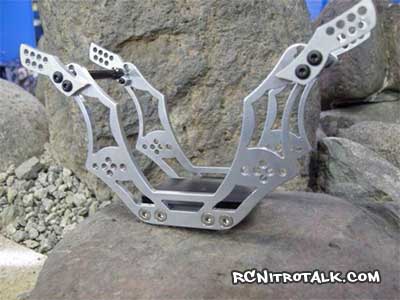

CKRC Rock-It adjustable chassis

ckrc-berg-adjustable-chassis3

The CKRC Rock-It adjustable chassis is compatible with:
2.5″” to 5.5″ shocks
Berg axles or Hot Racing power axles

CKRC Rock-It adjustable chassis kit includes:

  • (2) Polished 1/8″ 6061 Aluminum Lightened chassis side plates
  • (4) Adjustable shock ears
  • (1) 2″ wide Smooth delrin skid plate with drilled holes for ESC or whatever mounting.
  • (8) 3mm x 16mm stainless Flat screws.
  • (12) 3mm x 16mm button heads
  • (8) 3mm nylock nuts
  • (4) CKRC HD Bent Links

Part #: ck3041 – CKRC Adjustable Berg Chassis
MSRP: $85.99

Discusss the new CKRC Rock-It adjustable berg chassis in our RC Rock Crawlers forum.
