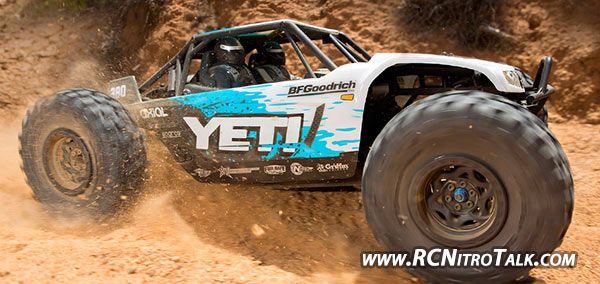

Axial Yeti RTR

The Axial Yeti a rock racing R/C that features a solid rear axle with independent front suspension. The Axial Yeti has been built to take the punishment of R/C rock racing and comes equipped with a no-compromise mix of speed and handling unlike any other R/C vehicle!

Axial Yeti Manual

Axial Yeti Parts List

#AX12021 – 2.2 BFGoodrich Krawler T/A – R35 Compound(2pcs)
#AX24206 – 2.4GHz Radio System (2 Channel) (AX-3, AR-3)
#AX24260 – AE-3 Vanguard ESC
#AX31047 – Brushless 3150KV Electric Motor
#AX30112 – Shock Diaphragm 13×4.5mm (6pcs)
#AX30113 – Rubber Bump Stop 3.6x7x4 (6pcs)
#AX30119 – Aluminum Shock Body 12×41.5mm (2pcs)
#AX30147 – Shock Shaft 3×53.5mm (2pcs)
#AX30163 – Pin 2.0x10mm (6pcs.)
#AX30170 – Shaft 3 x 22 (2pcs)
#AX30229 – Spring 14x54mm 4.33 lbs/in – Firm (Yellow) – (2pcs)
#AX30366 – Axle 5x35mm (2pcs.)
#AX30381 – EXO Heavy Duty Differential Output Shaft (2pcs)
#AX30382 – EXO Steering King Pin (TiN Coated) (2pcs)
#AX30383 – EXO Heavy Duty Differential Input Shaft (2pcs)
#AX30385 – Diff Gasket 16x25x0.5mm (2pcs)
#AX30390 – Differential Gear Set
#AX30392 – Bevel Gear Set (38/13)
#AX30408 – Input Shaft 5x29mm (2pcs)
#AX30413 – Slipper spring 8.5×12 165 lbs/in – Black (2pcs)
#AX30418 – Dogbone Set 7x96mm (2pcs)
#AX30500 – Heavy Duty Locker (2pcs)
#AX30776 – AR60 OCP Rear Axle Set (2pcs)
#AX30842 – Pinion Gear 32P 16T (5mm shaft)
#AX31028 – Pin 2.0x11mm (6pcs)
#AX31054 – Shock Shaft 3x71mm (2pcs)
#AX31058 – Yeti Rear Sway Bar (3pcs) (Soft, Medium, Firm)
#AX31059 – Slipper Plate Washer 33x1mm (2pcs)
#AX31060 – Servo Saver Spring 13×9.25mm 104 lbs/in (2pcs)
#AX31065 – Spur Gear 32P 64T
#AX31067 – Slipper Plate (2pcs)
#AX31068 – Slipper Pad 32.8×15.2x1mm (2pcs)
#AX31083 – Radio Box Seals
#AX31127 – 2-Speed Hi/Lo Transmission Top Shaft (5x91mm)
#AX31129 – 2-Speed Hi/Lo Transmission Bottom Shaft (5x75mm)
#AX31130 – High Speed Transmission Gear Set (48P 26T, 48P 28T)
#AX31131 – T-Case Gear Set (32P 15T, 32P 15T, 32P 27T)
#AX31134 – 2-Speed Hi/Lo Transmission Output Shaft (5x35mm)
#AX31138 – Aluminum Shock Body 12x59mm (2pcs)
#AX31139 – Center Driveline Universal Shaft (103mm)
#AX31148 – WB8-HD Driveshaft Coupler Set
#AX31155 – Spring 14x90mm 1.14 lbs/in – Orange (2pcs)
#AX31140 – Y-380 1/10th Scale Body – .040″ (Clear)
#AX31141 – Y-380 1/10th Scale Interior – .040″ (Clear)
#AX80002 – Diff Case -Small
#AX80006 – Servo Set
#AX80018 – Hardware Parts Tree
#AX80033 – 10mm Shock Parts Tree 1
#AX80034 – 10mm Shock Parts Tree 2
#AX80035 – 10mm Shock Caps Parts Tree
#AX80069 – AR60 OCP Axle Housing
#AX80070 – AR60 OCP Differential Cover
#AX80071 – AR60 OCP Straight Axle Adapter
#AX80072 – AR60 OCP 4-Link Mount
#AX80091 – EXO Bulkhead
#AX80103 – EXO Rear Light Bezel and Radiator Set
#AX80106 – EXO Steering Knuckle Carrier Set
#AX80111 – EXO Lower Front Control Arms Set
#AX80119 – EXO RTR Links Parts Tree
#AX80128 – Wheel Hub Adapters (2pcs Narrow, 2pcs Wide)
#AX31049 – Helmet Set (Black)
#AX31102 – Yeti Rear Cage Components
#AX31103 – Yeti Molded Chassis Tub
#AX31104 – Yeti Chassis Components
#AX31105 – Yeti Chassis Electronic Components
#AX31106 – 2-Speed Hi/Lo Transmission Motor Mount
#AX31107 – 2-Speed Hi/Lo Transmission Spur Gear Cover
#AX31108 – 2-Speed Hi/Lo Transmission Case
#AX31109 – Yeti Rear 4 Link Set
#AX31110 – Yeti Steering Knuckle Set
#AX31111 – Yeti Shock Tower and Body Post Set
#AX31112 – Yeti Front Bumper Set
#AX31113 – Yeti Rear Sway Bar Mount Set
#AX31114 – WB8-HD Driveshaft
#AX31115 – Y-380 Cage Sides (Left and Right)
#AX31116 – Y-380 Cage Front and inserts
#AX31117 – Y-380 Cage Top, Rear and Tire Carrier
#AX31122 – Double Shear Steering Rack
#AX31125 – Yeti Fuel Cell
#AX31118 – 2.2 Walker Evans Wheels – IFD Wheels – Black (2pcs)
#AXA0023 – M2.6x8mm Cap Head (Black) (10pcs)
#AXA0109 – M3x10mm Oversized Flat Hex Socket (Black) (10pcs)
#AXA0113 – M3x6mm Hex Socket Button Head (Black) (10pcs)
#AXA0125 – M3x35mm Hex Socket Button Head Screw Shaft (Black) (6pcs)
#AXA0128 – M3x61mm Hex Socket Button Head Screw Shaft (Black) (6pcs)
#AXA0147 – M3x16mm Hex Socket Flat Head (Black) (10pcs)
#AXA015 – M2x10mm Cap Head (Black) (10pcs)
#AXA0181 – M3x4mm Set Screw (Black) (10pcs)
#AXA0286 – Screw Shaft M4x2.5x12mm (6pcs)
#AXA0412 – M2.6x6mm Hex Socket Tapping Flat Head (Black) (10pcs)
#AXA0413 – M2.6x8mm Hex Socket Tapping Flat Head (Black) (10pcs)
#AXA0422 – M2.6x6mm Hex Socket Tapping Button Head (Black) (10pcs)
#AXA0437 – M3x15mm Hex Socket Tapping Button Head (Black) (10pcs)
#AXA087 – M3x16mm Cap Head (Black) (10pcs)
#AXA091 – M3x30mm Cap Head – Black (10pcs)
#AXA1041 – M2.5 Nylon Locking Hex Nut – Silver (10pcs)
#AXA1045 – M4 Nylon Lock Nut (Black) (10pcs)
#AXA1046 – M4 Serrated Nylon Lock Nut (Blue) (4pcs)
#AXA1052 – M3 Thin Nylon Locking Hex Nut (Black)
#AXA1053 – M3 Nylon Locking Hex Nut (Black) (10pcs)
#AXA1059 – 6mm Body clip (Black) (10pcs)
#AXA1069 – Washer 2.7×6.7×0.5 (10pcs)
#AXA1071 – Washer 4x8x0.5mm (10pcs)
#AXA114 – M3x8mm Hex Socket Button Head (Black) (10pcs)
#AXA115 – M3x10mm Hex Socket Button Head (Black) (10pcs)
#AXA116 – M3x12mm Hex Socket Button Head – Black (10pcs)
#AXA1162 – O-Ring 5x1mm (10pcs)
#AXA117 – M3x15mm Hex Socket Button Head (Black) (10pcs)
#AXA1179 – O-Ring 2.5×1.5mm (10pcs)
#AXA118 – M3x18mm Hex Socket Button Head – Black (10pcs)
#AXA1184 – O-Ring 7.5×1.5mm (S8) – (10pcs)
#AXA119 – M3x20mm Hex Socket Button Head (Black) (10pcs)
#AXA1202 – O-Ring 3.5x2mm (10pcs)
#AXA121 – M3x30mm Hex Socket Button Head (Black) (10pcs)
#AXA1221 – Bearing 5x11x4mm (2pcs)
#AXA1230 – Bearing 10x15x4mm
#AXA1391 – E4 e-clip (10pcs)
#AXA1393 – E2.5 e-clip (10pcs)
#AXA144 – M3x8mm Hex Socket Flat Head (Black) (10pcs)
#AXA146 – M3x12mm Hex Socket Flat Head – Black (10pcs)
#AXA148 – M3x18mm Hex Socket Flat Head (Black) (10pcs)
#AXA150 – M3x25mm Hex Socket Flat Head (Black) (10pcs)
#AXA1635 – M3x35mm Turnbuckle (2pcs)
#AXA180 – M3x3mm Set Screw (Black) (10pcs)
#AXA291 – M4x4mm Set Screw (Black) (6pcs.)
#AXA435 – M3x10mm Hex Socket Tapping Button Head (Black) (10pcs)
#AXA436 – M3x12mm Hex Socket Tapping Button Head (Black) (10pcs)
#AXA464 – M3x8mm Hex Socket Tapping Flat Head (Black) (10pcs)
#AX31061 – M2.6x18mm Hex Socket Tapping Button Head (Black) (10pcs)
#AX31076 – O-Ring 3.8×1.9mm (P4) (10pcs)
#AX31119 – M3x35mm Hex Socket Button Head (Black) (10pcs)
#AX31120 – M3x10mm Hex Socket Flat Head (Black) (10pcs)
#AX31121 – M4x12mm Cap Head (Black) (10pcs)

Axial Yeti Videos

Axial Yeti Rock Racer Specs

Length: 19.5″ (495mm)
Width: 12.3″ (312mm)
Height: 7.7″ (195mm)
Wheelbase: 14.2″ (360mm)
Ground Clearance: 2″ (50mm)
Weight: 6.5lbs (2.9kg)
Motor: Brushless 3150KV 4 Pole Electric Motor
Radio: AX-3 2.4GHz transmitter
Servos: Tactic TSX45, 151 oz-in
ESC: Vanguard AE-3 ESC, 3S LiPo, 8 NiCELL, Forward / Reverse, Waterproof
