Kyosho Ultima Overview
Introduction

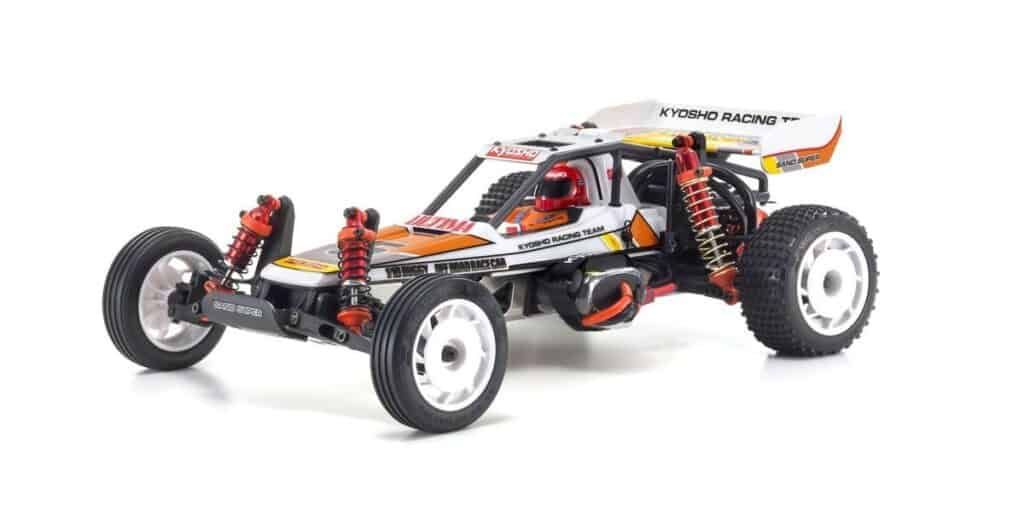

The Kyosho Ultima Off Road Racer 1/10 2WD Buggy Kit brings legendary RC racing heritage into the modern era as the eighth addition to Kyosho’s celebrated Vintage Series. This meticulously reimagined classic buggy transforms the iconic 1986 ULTIMA design into a contemporary racing powerhouse, featuring an aircraft-grade A6061T6 aluminum alloy monocoque frame and full ball bearing specifications that deliver competition-ready performance on today’s demanding off-road tracks.

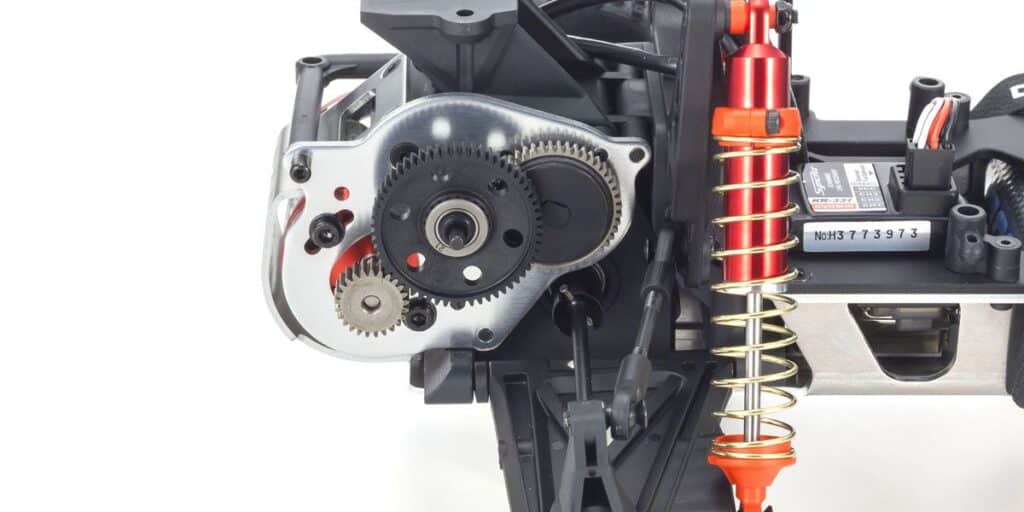

Built for both nostalgia enthusiasts and serious racers, this 2WD electric buggy kit combines vintage aesthetics with cutting-edge engineering, including high-durability sintered alloy gears, protective battery guard system, and multi-pin block pattern rear tires optimized for modern racing circuits. The authentic polycarbonate body with detailed driver cockpit faithfully recreates the original ULTIMA’s distinctive style while crash-resistant components and slipper clutch protection ensure this RC buggy can handle the intensity of competitive racing and weekend bashing adventures.
Kyosho Ultima Parts List
1-532606H – Flat Head Screw (M2,6×6/10pcs)
1-S33008H – Flat Head Screw(Hex/M3x8/10pcs)
1-533010H – Flat Head Screw(He>@/M3x10/1 Opcs)
1-S33012H – Flat Head Screw(He>dM3x12/10pcs)
1-533015H – Flat Head Screw(Hex/M3x15/10pcs)
1-S33018H – Flat Head Screw(Hex/M3x18/1 Opcs)
1-512605H – Button Screw(He>@/M2.6×5/10pcs)
1-S13006H – Button Screw(Hex/M3x6/10pcs)
1-S13008H – Button Screw(Hex/M3x8/10pcs)
1-S22608 – Cap Screw(M2,6×8/5pcs)
1-522612 – Cap Screw(M2.6×12/5pcs)
1-522616 – Cap Screw(M2.6×16/5pcs)
1-523012 – Cap Screw(M3x12/5pcs)
1-523018 – Cap Screw(M3x18/5pcs)
1-553003 – Set Screw(M3x3/1 Opcs)
1-554004 – Set Screw(M4x4/1 Opcs)
1-S34008H – Flat Head Screw(Hex/M4x8/10pcs)
1-S34010H – Flat Head Screw(He>@/M4x12/1 Opcs)
1-523006F – Cap Screw(M3x6/Flanged/5pcs)
1-W300805 – Washer(M3x8x0.5/10pcs)
1-N3024 – Nut(M3x2.4/1 Opcs)
1-N3033N – Nut(M3x3.3) Nylon (5pcs)
1-N4055N – Nut(M4x5.5) Nylon (5pcs)
1-N4056FN – Nut(M4x5.6) Flanged Nylon (Spcs)
1-E025 – E-Ring(E2.5/1 Opcs)
1-E030 – E-Ring(E3.0/10pcs)
36105 – 2.4GHz Antenna Pipe
92643 – Snap Pin(4mm/10Pcs)
92638 – Snap Pin (10Pcs)
96441 B – Sponge Tape(1 xl00x150)
LA43 – 5.8mm Ball End(12pcs)
ORG03 – O-Ring(P3/Orange) lOPeS
0RG03BK – O-Ring(P3/Black)10Pcs
0RG04SSBK – O-Ring(SS4/Black)10pcs
BRG001 – Shield Bearing(5xlOx4)4Pcs
BRG003 – Shield Bearing(4x8x3)4Pcs
BRG014 – Shield Bearingll0xI5x4)2Pcs
FA304-25 – Pinion Gear (25T-48P)
OT209 – Shock Piston (OPTIMA)
OT210R – Shock Plastic Parts (Red/OPTIMA)
OT221 – Gear Set (OPTIMA)
OT222 – Diff Inner Parts Set (OPTIMA)
OT223 – DiffGasket (4pcs/OPTIMA)
OT224 – Diff Shaft (2pcs/OPTIMA)
OT225 – Gear Shaft Set (OPTIMA)
OT228 – Swing Shaft (OPTIMA)
OT230 – Rear Wheel Shaft (2pcs/0PTIMA)
OT231 – Wheel Hub Set (2pcs/OPTIMA)
OT234 – Tie-Rod <0pTIMA)
OT235R – Front Shock (Red/OPTIMA)
OT236R – Rear Shock (Red/OPTIMA)
OT237R – Front Shock Case (Red/OPTIMA)
OT238R – Rear Shock Case (Red/OPTIMA)
OT239 – Front Shock Shaft (2PCS/0PTIMA)
OT240 – Rear Shock Shaft (2pcs/OPTIMA)
OT248 – Flange Shaft3x26mm (2pcs/OPTIMA)
OT249 – Flange Shaft3x30mm (2PCS/0PTIMA)
OT252W – Wing (White/Javelin)
OT253 – Shock Gasket 12mm(4pcs)
OTW123 – Front Shock Spring Set (SlM/H l2pcs/Optima)
OWV124 – Rear Shock Spring Set (S/M/H I2pcs/Optima)
5C215 – Slipper Plate (2pcs/Scorpion 2014)
SC216 – Slipper Pad (2pcs/Scorpion 2014) 7J)
SC242 – 4.8mmxM2,6 Ball Nut (2pcs/Scorpion 2014)
SC246 – Battery Strap (16X200mm)
SCT001MB – Front Tire (Medium/2pcs/Scorpion 2014)
OTT244M – Block Tire 50x83x36mm M
UT001 – Bulkhead Set (ULTlMA)
UT002 – GearBox (ULTIMA)
UT003 – Wing Stay (ULTIMA)
UT004 – Suspension Arm Set (ULTIMA)
UT006 – Servo Saver Set lULTIMA)
UT007 – Radio Plate Set (ULTIMA)
UT008 – DiffGearCase & Pulley[ULTlMA)
UT0095 – Motor Plate (ULTlMA)
UT010S – Main Chassis (SiWer/ULTIMA)
UT0115 – Motor Guard (Silver/ULTIMA)
UT012 – Servo Saver Shaft [ULTIMA)
UT013 – Shaft 3x43mm (ULTIMA)
UT014 – King Pin (ULTIMAI
UT015 – Shaft 3x64MM (ULTIMA)
UT016 – Front WheelShaft (ULTIMA)
UT017 – M3x6 Tapered Washer
UT018 – Servo Rod Set (ULTIMA)
UT019 – Flange Metal 3x6mm (ULTIMA)
UT020 – M3 Screw Set(ULTIMA)
UTB001 – Non-Decoration Body (ULTIMA)
UTH001WT – 80 Front Wheel 50mm (White/Zpcs/Ultima)
UTH002WT – 80 Rear Wheel 50mm (White/2pcs/Ultima)
W0201 – 5.8 Steel Ball 10PC
Kyosho Ultima Option Parts
1-S34010HT – Flat Head Screw(Hex/Titanium/M4x10/5pcs)
92416 – Titanium Adjust Rod50mm
92413 – Titanium Adjust Rod38mm
BRG007F – Shield Bearing(3x6x2.5)2Pcs
BRG002 – Shield Bearing(5x8x2.5)4Pcs
OT210BK – Shock Plastic Parts (Black/0pTlMA)
0T252BK – Wing (Black/Javelin)
OT252GR – Wing (Peppermint Green/Javelin)
OT2520R – Wing (Orange/Javelin)
OT252R – Wing (Red/Javelin)
OT252Y – Wing (Yellow/Javelin)
OTW101 – Ball Diff (for Belt Drive / OPTIMA)
OTW125 – Universal Swing Shaft (2pcs/Optima)
OTW126 – MCN Spur Gear 51T/48P (for Brushless Motor)
SCW021 – HD Slipper Pad (2pcs/Scorpion 2014)
OWV128 – Gold Damper Front (OPTIMA)
OTW129 – Gold Damper Rear (OPTIMA)
